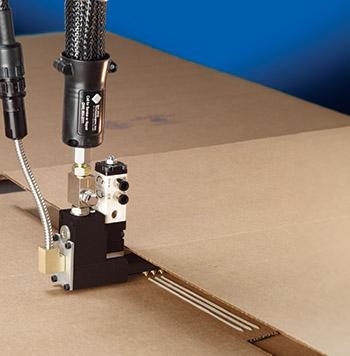

Repeatable Bead & Stripe Application for High-Speed Assembly Lines

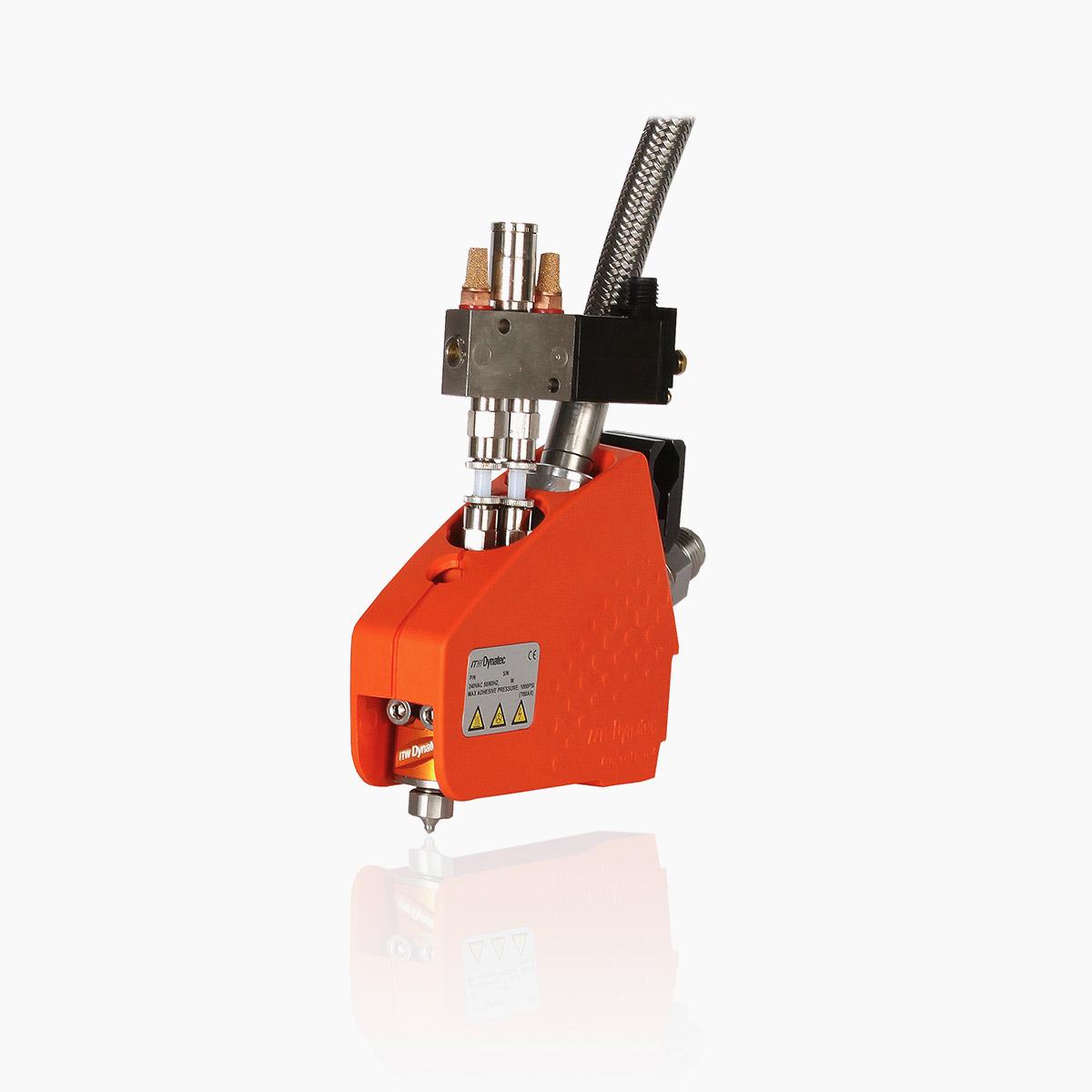

The MeltX Bead Gun Applicator is the backbone of adhesive dispensing on case sealing and carton manufacturing lines worldwide. Engineered for high-cycle, high-speed operation.
< 5ms
Valve Response Time
300 cycles/min
Max Cycle Rate
±0.1mm
Bead Placement Accuracy
Millisecond-precision open/close cycles deliver clean bead starts.
Interchangeable nozzle tips for different bead diameters.
Positive pressure cut-off prevents adhesive drip during idle periods.
Gang multiple gun modules on a single manifold.
| Parameter | Value |
|---|---|
| Valve Type | High-speed solenoid |
| Response Time | < 5 ms |
| Max Cycle Rate | 300 cycles/min |
| Bead Diameter Range | 1 mm – 10 mm |
| Max Operating Pressure | 100 bar |
Drum & Pail Unloader-Type Hot Melt Melters Optimized for High-Volume Packaging
Uniform, Streak-Free Adhesive Coating Across the Full Web Width
One Screen. Total System Control. Every Parameter at Your Fingertips.
Our engineers will recommend the right Bead Gun Applicator model for your production volume and adhesive type.
Talk to an EngineerSpeak directly with our application engineers. Share your line speed, PLC configuration, and material requirements, and we will provide a technical system recommendation—tailored to your specific factory floor.
